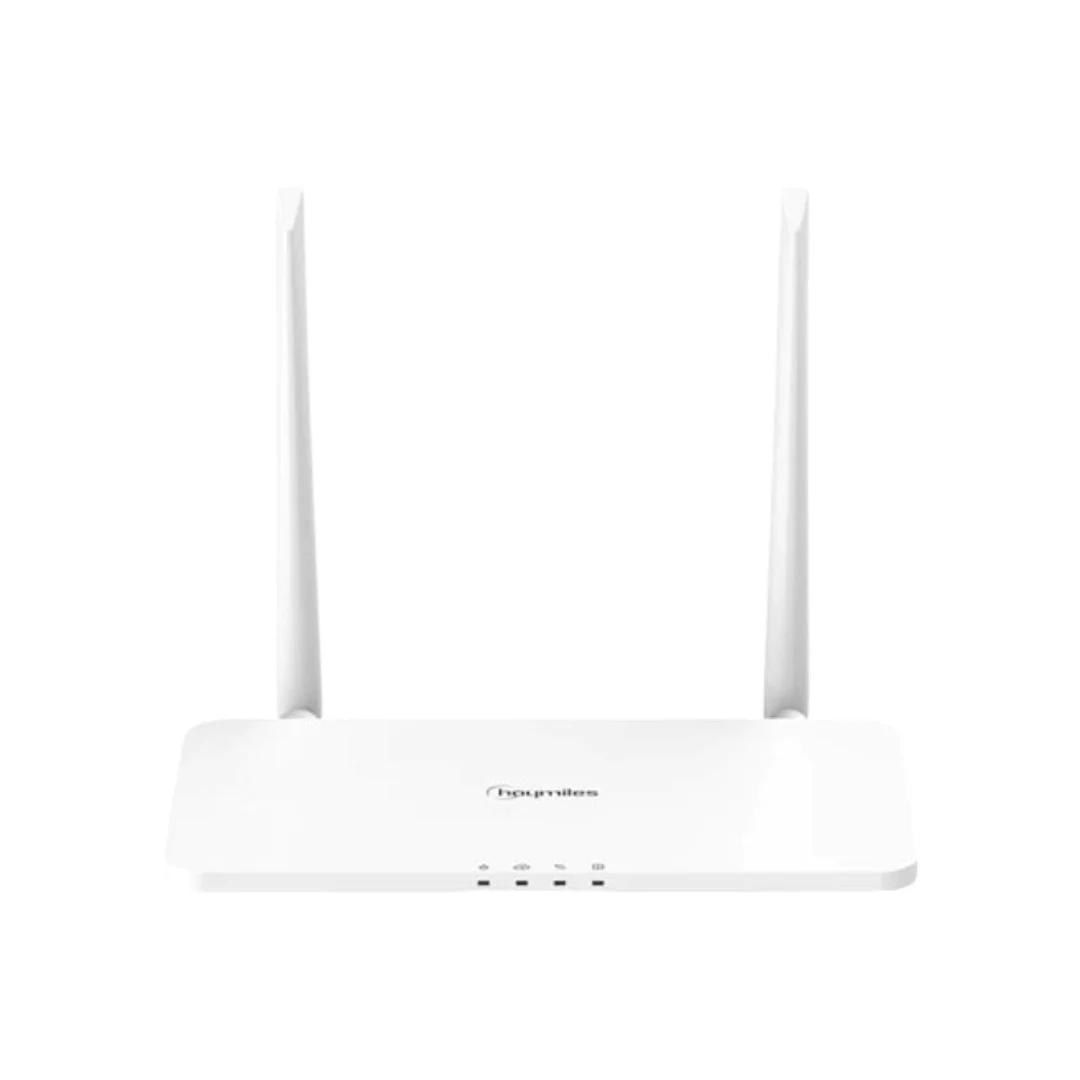

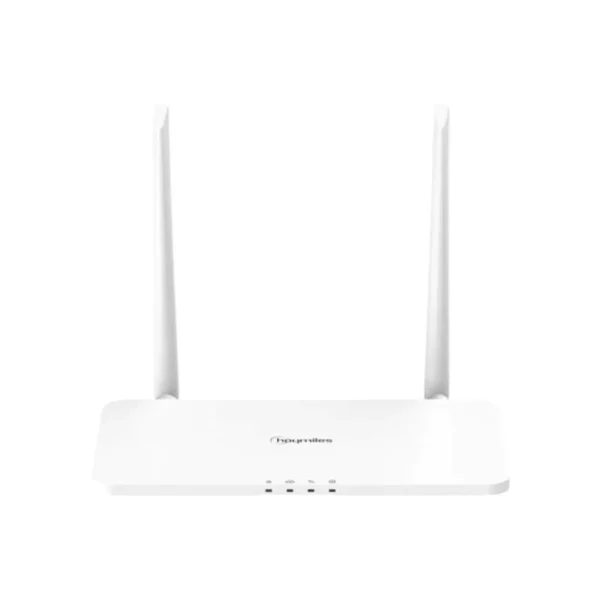

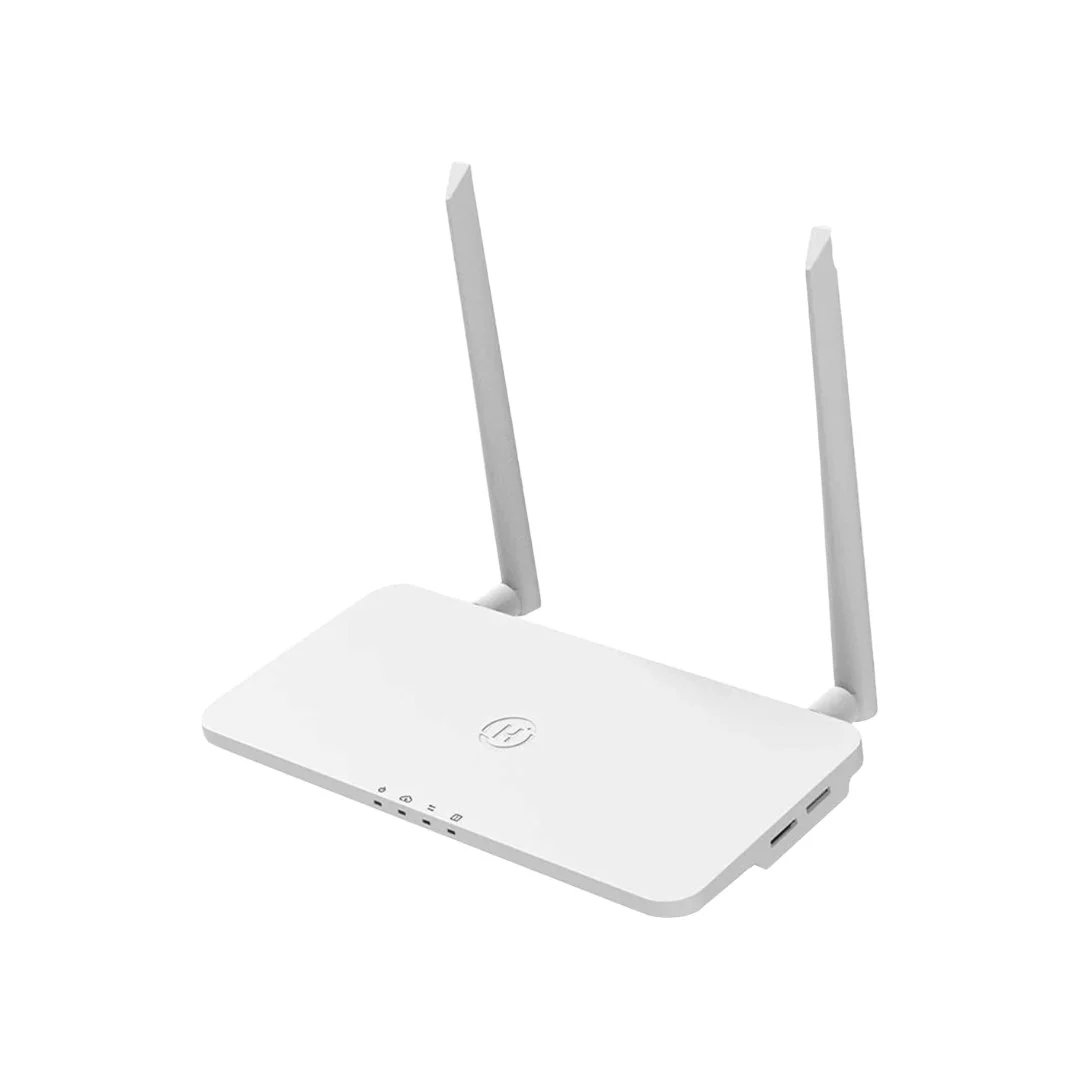

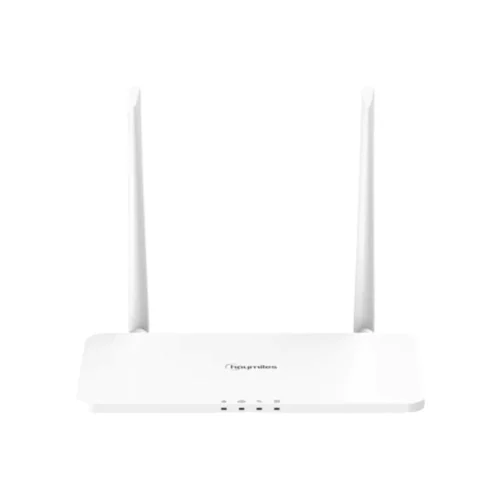

Data Transfer Unit Datasheet DTU-Pro-S
Features
- Reliable and Flexible
• Sub-1G wireless solution enables stable communication with HMS, HMT series of microinverter
• More communication options with Ethernet, Wi-Fi or 4G
• Support of RS485, Ethernet to communicate with peripherals - Simple and Efficient O&M
• Module-level monitoring and data storage
• Local configuration with S-Miles Toolkit
• Support remote O&M including remote upgrading, parameter setting - Smart
• Smart zero export control and power export limiting
• PV generation and load consumption monitoring
- Dimensions: 200 × 101 × 29mm (without antennas)
- Power consumption: Typ. 1.5 W / Max. 3.0 W
- Weight: 0.20kg
- Monitoring capacity: 99 PV modules
- Communication with microinverter: Sub-1G
- Maximum distance (open space): 400m

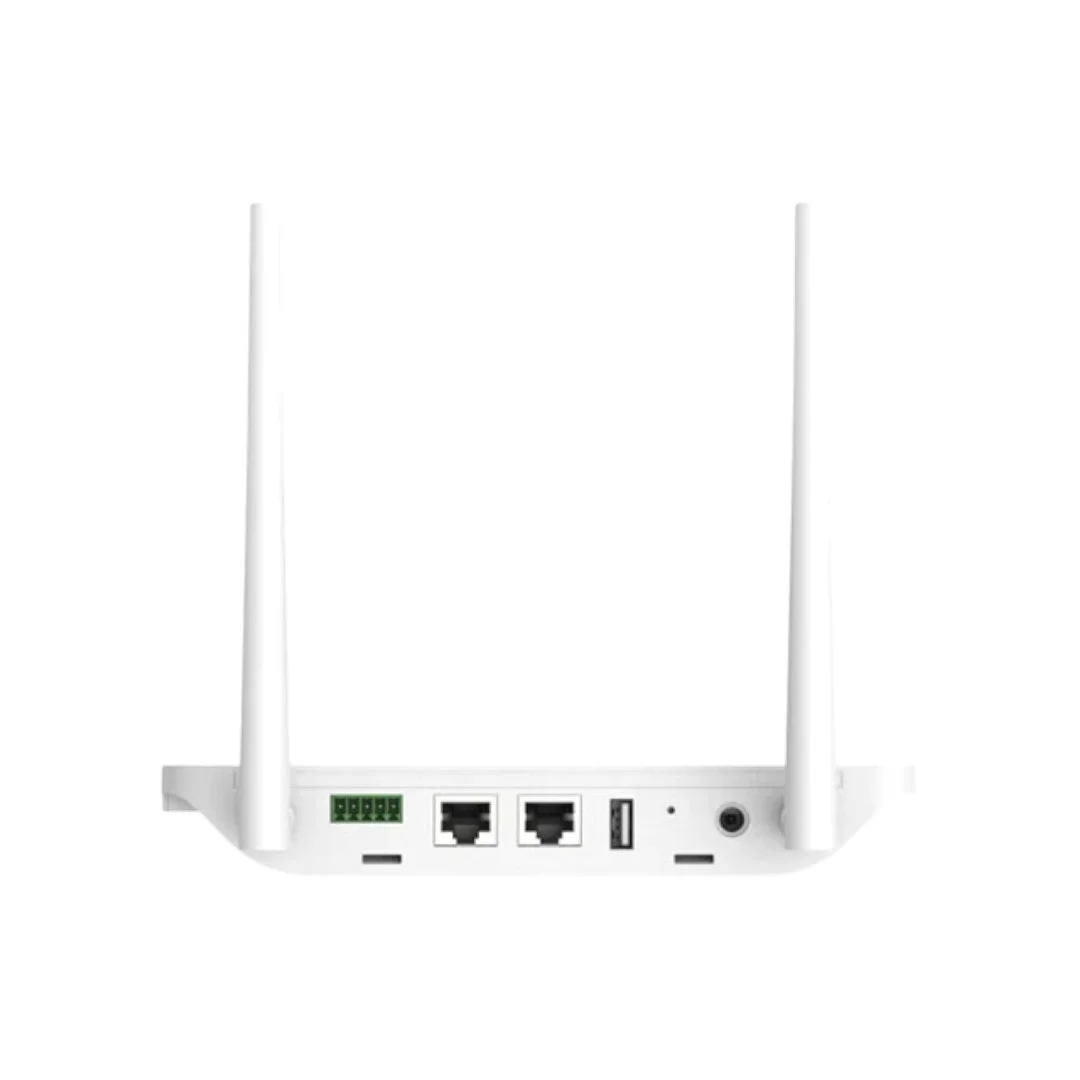

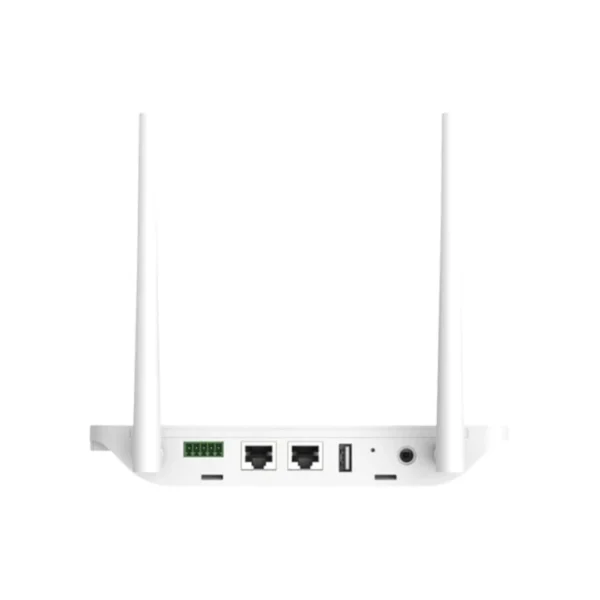

- Internet connection: Ethernet (RJ45 × 1, 100Mbps) Wi-Fi (802.11b/g/n)
- Installation: Wall/Desktop mounting
