MERC-1100W-P(long input cable) (25y)
You are here:
1V Safe Voltage Shutdown Easier for Detection
- Enclosure protection IP68
- Certifications
- Accessories type Optimizer
- Rated input DC power (W) 1100
- Max input voltage (V) VOC max 125
- Max short circuit current ASC (A) 20,0
- Max efficiency 99,5%
- Weighted efficiency 99,0%
- Overvoltage category Class II Max output voltage (VDC) 80
- Max output current (ADC) 22
- Optimizer compatible inverter SUN2000-12-20KTL-M2 SUN2000-12-25KTL-M5
- SUN2000-30-40KTL-M3 SUN2000-50KTL-M3
- Dimensions 14,9 x 10,4 x 4,9 cm Weight 1,05kg

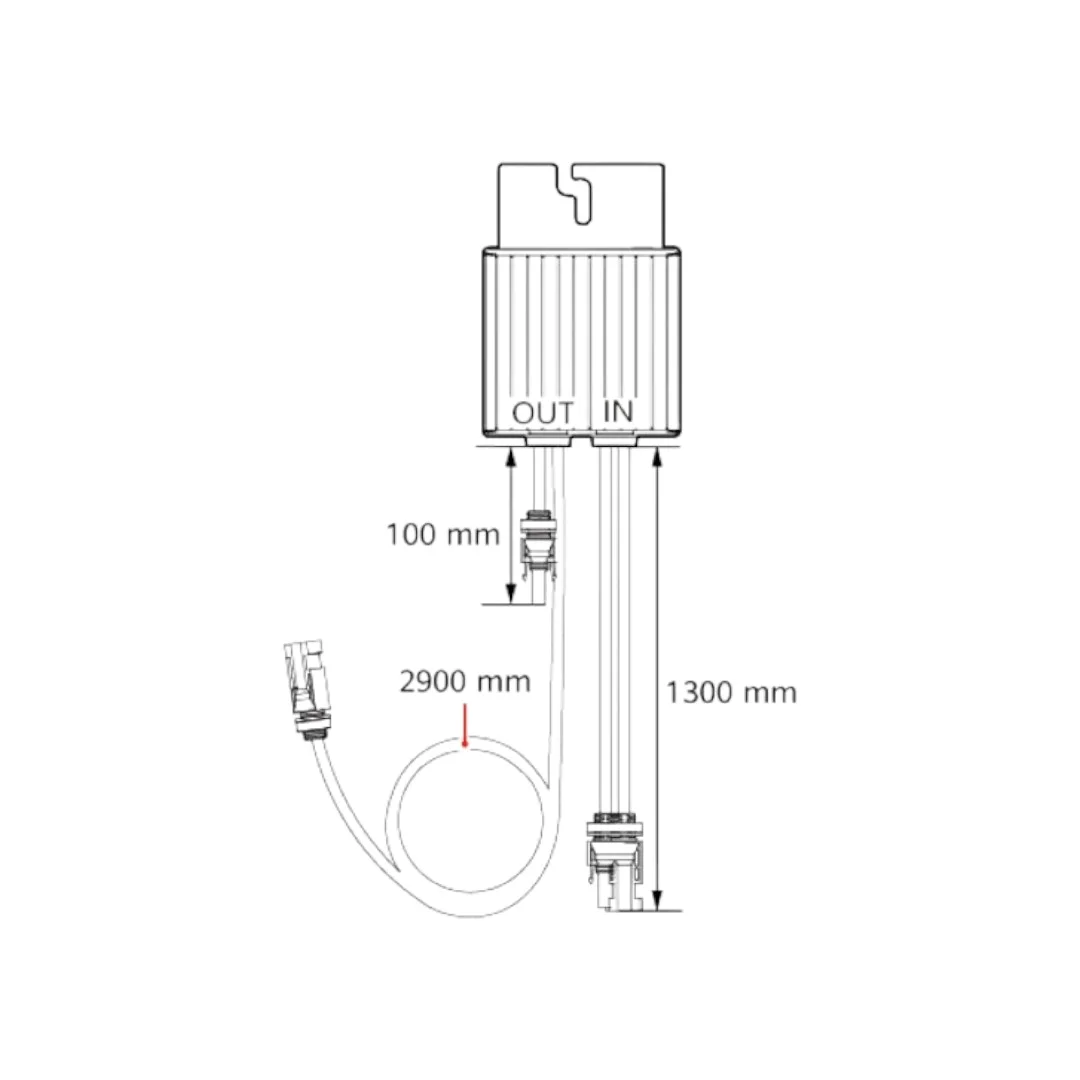

- Input wire length 1,3m Output wire length 2,9m
- Module installation Portrait,Landscape
- Connection method Single input for series connected modules
- Min/max string length 1ph 0 / 0
- Min/max string length 3ph 8 / 25
- Max DC power per string (W) 20000 Mounting Frame mounted,Rail mounted
- Packaging Unit 10,0 pieces
